FAQ

Performance

Duration for a loop executing 1000 x rgb_to_hsv:

Hardware Duration [msec]
typical PC     0.4
LMS-ESP32 280
Spike with Pybricks 640

It's slower by orders of magnitude!

You should be aware that a rh.call(...) already takes ~10 msec.

IDE

Thonny

Start simple with Thonny. Thonny typically edits files directly on the device, so you have no local copy.

VS Code + Pymakr

To have a local copy, git integration, ... use VS Code with Pymakr Preview extension. The extension is not updated since late 2022, but works most of the time.
Sometimes gets stuck during file transfer and only solution I found so far is restarting VS code with Ctrl+Shift+P 'Reload Window' command.

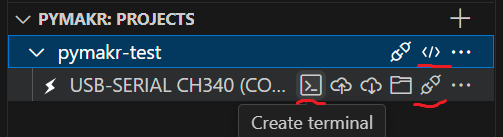

Usage is a bit obscure, after configured you basically need these 3 underlined buttons in the Explorer tree that are only shown when hovering over the line.

For syntax highlighting add the micropython-esp32-stubs to your typings folder as described here and add this folder to py_ignore in your pymakr.conf file.

Neopixel and other functionality is already included in the standard MicroPython distribution, but some modules are LMS-ESP32 specific, so you should copy additional files into your typings folder:

module file
PUPRemote pupremote.py
mpy_robot_tools servo servo.py
mpy_robot_tools ... ...
Strapping Pins

Some pins of the ESP32 have special behaviour during boot time, these are called strapping pins.

Pins 0,2,12,15 at the IO header should be avoided unless you really know how to handle them.

5V Tolerance The datasheet says the maximum voltage at IO pins is 3.6V, so does not look 5V tolerant. Various sources on the web say that it is practically 5V tolerant.

So should work with 5V powered sensors, but we are on the safer side, if the data lines are 3.3V only.

sensor 3.3V data lines details
gy-33 ok Can be powered with 3.3V or 5V. Has an onboard 3.3V regulator and the 3K9 pull-up resistors are behind the regulator
vl53l0x ok, use 3.3V power Can be powered with 3.3V or 5V. Has an onboard 3.3V regulater, but the 10K I2C pull-up resistors are connected to the input voltage
pixy2 ok, use 3K3 pull-up resistors to 3.3V Is 5V powered but data lines have 3.3V level
More than 8 commands

Use MicroPython firmware >= 20250617

Time between rs.process()

You must not use more than 200msec in betweeen, else the connection is reset by Spike and if 5V powered by Spike (PUPRemoteSensor(power=True)) the power is turned off.

If you have a device that has a long initialization time and is Spike 5V powered, you have to call rs.process() before to turn on power and make the operation interruptable, like pixy.init(callback=rs.process) to keep power on.

wait_ms parameter at PUPRemoteHub.call function
Symptom
A sensor returns wrong / outdated values
Reason
The sensor took longer than the wait time
