Using the Pixy2 camera with the LMS-ESP32 board from Antons Mindstorms and LEGO® Spike running Pybricks

The example below uses the indigoparadox/boxes_and_bots library.

LMS-ESP32 code:

from neopixel import NeoPixel
from machine import Pin, SoftI2C
from pupremote import PUPRemoteSensor
from pixy import CMUcam5 # copy from https://github.com/indigoparadox/boxes_and_bots/blob/master/drivers/micropython/cmucam5/pixy.py
import sys, time

np = NeoPixel(Pin(25), 1) # onboard neopixel
def statusLed(r,g,b):
    np[0] = r,g,b
    np.write()

def sLamp(a, b):
    pixy.set_lamp(a, b)

def sBrit(v):
    pixy.set_brightness(v)

def gRGB(x, y):
    return pixy.get_rgb(x, y, 0)

try:
    statusLed(0, 0, 255) # blue = connection wait
    rs = PUPRemoteSensor(power=True)
    rs.add_command('sLamp', '', 'bb')
    rs.add_command('sBrit', '', 'B')
    rs.add_command('gRGB', 'BBB', 'HB')
    rs.process()

    statusLed(255, 255, 0) # yellow = initialize
    # PixyMon->Configure->Interface=I2C + address 0x54, scl+sda with 3k3 pull-up each to 3.3V
    pixy = CMUcam5(SoftI2C(freq=1000000, scl=Pin(32), sda=Pin(33)))
    pixy.init(callback=rs.process) # power turned off w/o periodic heartbeat
except Exception as e:
    statusLed(255, 0, 0) # red = error
    raise

statusLed(0, 255, 0) # green = ready
while True:
    try:
        rs.process()
    except Exception as e:
        if isinstance(e, KeyboardInterrupt):
            break
        sys.print_exception(e)
        statusLed(255, 0, 0) # red = failed
        time.sleep_ms(100)
        statusLed(0, 255, 0) # green = retry

Pybricks code:

from pybricks.parameters import Port
from pupremote_hub import PUPRemoteHub # copy from https://github.com/antonvh/PUPRemote/blob/main/src/pupremote_hub.py
import pixy_color # copy from example folder

rh = PUPRemoteHub(Port.A)
rh.add_command('sLamp', '', 'bb')
rh.add_command('sBrit', '', 'B')
rh.add_command('gRGB', 'BBB', 'HB')

rh.call('sLamp', 1, 1)
rh.call('sBrit', 60)

while True:
    r,g,b = rh.call('gRGB', 150, 100)
    h,s,v = pixy_color.rgb_to_hsv(r,g,b)
    c = pixy_color.hsv_to_color(h,s,v)
    print(f'rgb : {r:3} {g:3} {b:3}    hsv : {h:3} {s:3} {v:3}    color : {c}')

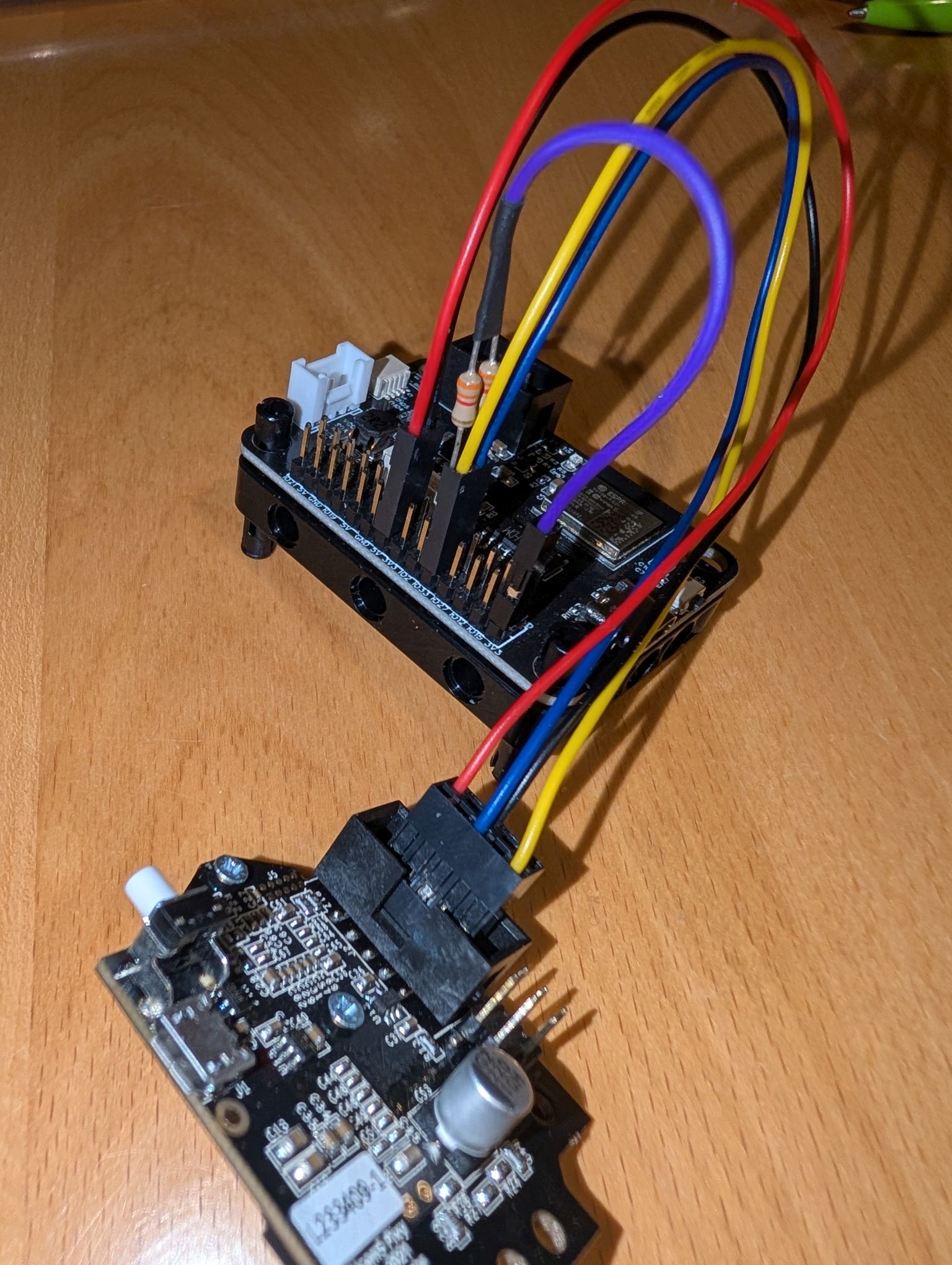

Connections

The camera can be connected with different interfaces. Use I2C with 3k3 pullup for SDA and SCL to 3.3V or connect in parallel with another I2C device already having integrated pullups.

The camera permanently draws 240 mA. To preserve Spike battery capacity you should think about adding a powerbank to the LMS-ESP32 and initialize PUPRemoteSensor with power=False, then you can swap initialize/connect blocks and omit the callback.
